1-292230-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1-292230-2
Datasheet:
Description:

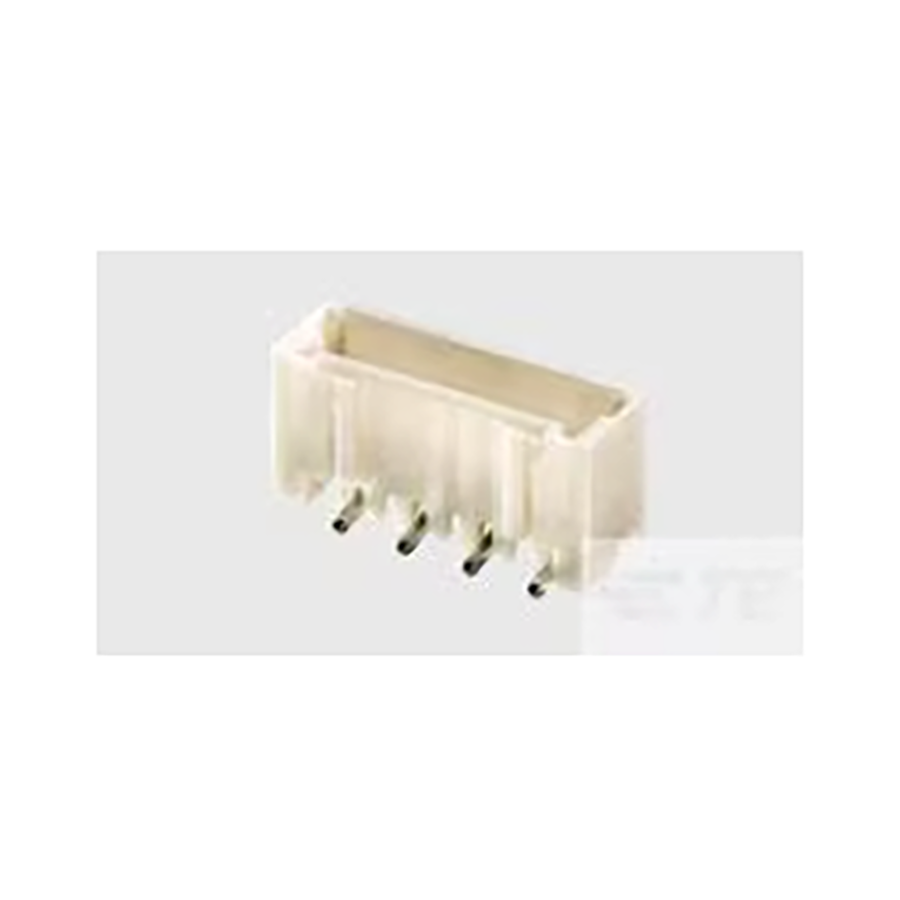

Headers and Wire Housings SMD/SMT Header, Pin Number of Positions:12 Pitch:1.5 mm
| Parameter | Value |
|---|---|
| Length | 20.4978 mm |
| Width | 4.7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Height | 6.9088 mm |
| Packaging | Reel |
| Depth | 4.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 1.5 mm |
| Current Rating | 2 A |
| Max Voltage Rating (DC) | 5.05 kV |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Beige |
| Number of Contacts | 12 |
| ELV | Compliant |
| Connector Type | Header, Pin |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Shape | Rectangular |
| Contact Current Rating | 2 A |
| Housing Color | Natural |
| Insulation Diameter | 1.0414 mm |
| Contact Mating Length | 2.3876 mm |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 787.4 µm |
| Contact Gender | Male |
| Mating Post Length | 2.4 mm |
| Contact Shape | Square |
| Schedule B | 8536694040 |
| Sealable | No |
| Mating Retention | With |
| PCB Mount Retention | With |
| PCB Mount Alignment | With |
